Robotic Cathode Stripping Machine
High-Precision Flexible Robotic Stripping System for Copper Refineries
The PRS robotic cathode stripping machine is an advanced automated stripping solution designed for high-volume copper electrorefining and electrowinning plants. It uses industrial robot technology to achieve fully hands-free copper sheet separation, combining high precision, flexible production and reliable performance.
With a stripping capacity of up to 400 cathodes per hour and support for annual production volumes up to 500,000 tons, this system is built for demanding production environments. The stripping speed is fully adjustable to match your specific throughput requirements and production rhythm.
Flexible Configuration Options
We offer three standard configurations to match different production volumes, budget levels and space constraints:
| Configuration | Option 1: Compact & Efficient | Option 2: All-in-One with Washing | Option 3: Maximum Throughput |
|---|---|---|---|
| Robot Quantity | 1 robot | 1 robot | 2 robots |
| Auto Washing System | Not included | Included | Not included |
| Footprint | 7.5 m × 8 m | 10 m × 10 m | 7 m × 10 m |
| Stripping Capacity | Up to 400 plates/hour | Up to 400 plates/hour | Up to 800 plates/hour |
| Best For | Small-medium capacity, budget-focused projects | Plants requiring full-process automation | High-capacity refineries needing maximum throughput |
All three configurations can be further customized according to your specific cathode dimensions, workshop layout and production requirements.
Product Advantages
| Item | Parameter Range |
|---|---|
| Stripping Capacity | Up to 400 – 800 cathodes per hour (depending on configuration) |
| Robot Type | 6-axis industrial robot |
| Robot Quantity | 1 – 2 units |
| Robot Payload | 50 – 200 kg (selected by cathode weight) |
| Repeat Positioning Accuracy | ± 0.1 mm |
| Applicable Cathode Sizes | Multiple sizes within robot working range |
| Control Mode | Fully automatic PLC + robot control |
| Operator Requirement | 1 operator for monitoring |
| Standard Footprint | 7.5m×8m / 10m×10m / 7m×10m |
Core Advantages
- Scalable Throughput for Large-Scale Production
With single-robot and dual-robot configurations available, the system can support a wide range of production volumes - from 400 plates per hour for medium operations up to 800 plates per hour for high-capacity refineries. Speed is fully adjustable to match your production schedule. - Flexible for Multi-Specification Production
The robot can be programmed to handle different cathode sizes and deposit thicknesses. Switching between product specifications only requires changing the program, without mechanical reconfiguration - ideal for plants with multiple product variants. - Gentle & Precise Stripping
Controlled robot motion applies consistent and uniform stripping force, reducing mechanical impact on cathode plates. This helps extend cathode service life and reduce plate breakage rates. - Fully Automated Operation

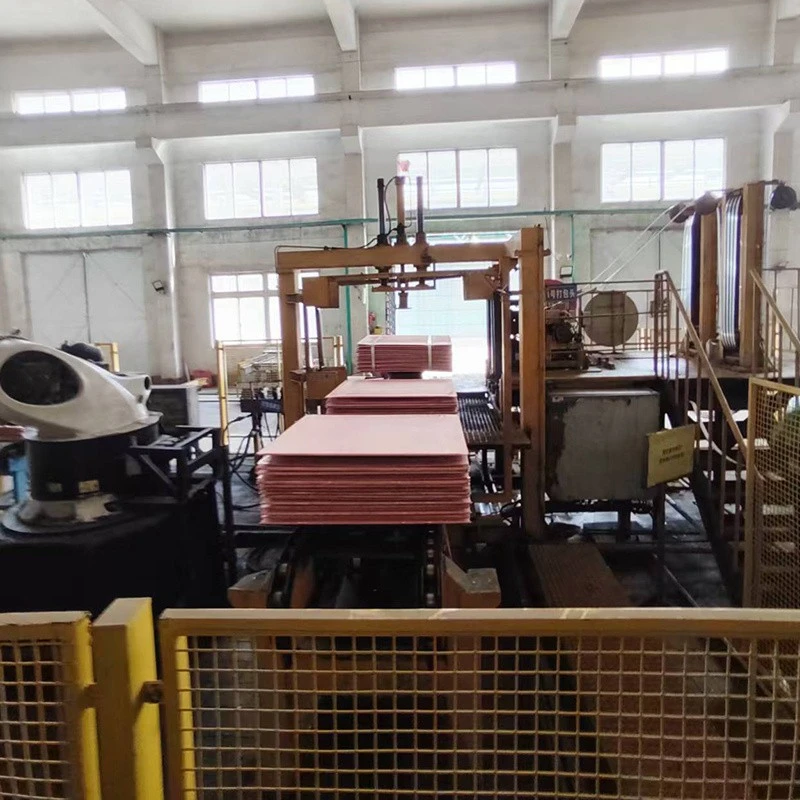

From cathode receiving to copper stacking and cathode return, the entire process runs automatically with minimal manual intervention, reducing labor costs and improving operational safety. - Flexible Layout Options
With three standard footprint options and custom layout capabilities, the system can be adapted to fit various workshop sizes and spatial constraints.
Site Requirements
Requires sufficient space and stable foundation for robotic arms and control cabinets. We provide layout assistance and remote installation support.
Power & Connectivity
Ensure compatibility with your plant's power and control systems. Customizations are available upon request.
Operator Training
Basic robotic programming and maintenance training recommended. PRS provides on-site or remote training services.
See It in Action
On-Site Commissioning Service
We provide professional on-site commissioning service to ensure your robotic stripping system operates at optimal performance from day one. Our experienced team of mechanical engineers and electrical engineers will visit your site to complete installation guidance, equipment calibration, robot programming, trial operation and operator training.
Learn more about our field service: PRS Engineers On-Site Commissioning for Copper Stripping Machine
Technical Support
- On-site mechanical and electrical engineer commissioning service
- System configuration and layout planning
- Robot model selection based on your requirements
- On-site installation, commissioning and programming
- Operator and maintenance personnel training
- Long-term technical support and spare parts supply
Packaging & Shipping
Packaging
Steel-frame crate with moisture protection.
Shipping
FOB or CIF by sea; disassembled into 2–3 modules for container loading.
Markings
Clear labels and installation guides for each part.
Lead Time
60-70 working days.
