Electrolytic Cell

Electrolytic Cell for Copper Tankhouse Operations

PRS electrolytic cell is the core equipment for copper electrolysis and electrowinning processes, widely used in copper refining, copper recycling and hydrometallurgical production lines. With corrosion-resistant structure, reliable sealing performance and optimized liquid distribution design, our electrolytic cell ensures stable operation, high cathode copper deposition efficiency and long service life for smelting plants.

• Corrosion-Resistant StructureAdopts high-strength, acid-resistant materials to withstand long-term electrolyte corrosion, suitable for continuous 7-day copper production scenarios.

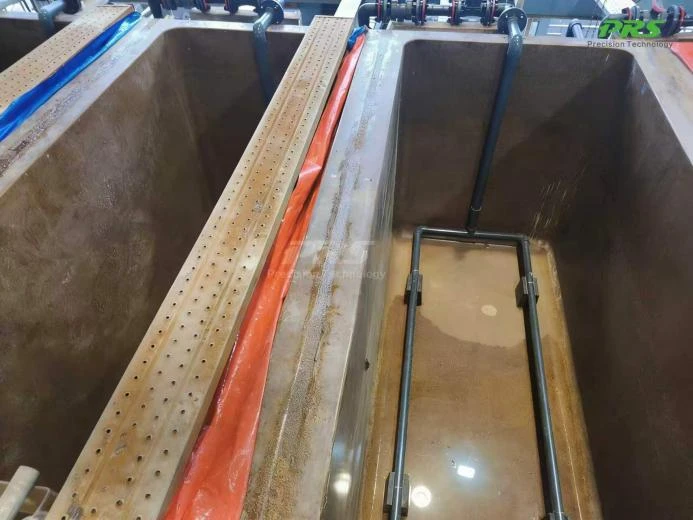

• Uniform Liquid DistributionEquipped with a dedicated liquid distribution system to ensure even electrolyte flow. For more details about the supporting parts, please check our Liquid Distribution Manifold.

• Excellent Sealing & InsulationProfessional gap filling and grouting technology between electrolytic cells effectively prevents leakage, improves insulation performance and guarantees overall structural stability.
• Easy Installation & MaintenanceStandardized modular design simplifies on-site installation and daily maintenance. For complete installation procedures, please refer to: How is the Electrowinning Cell Installed.

How to Make Grouting Between Cells

This video shows how to prepare and apply grouting between electrowinning (EW) cells, ensuring proper sealing, insulation, and structural stability.

Gap filling material preparation ratio:

• Resin: 6 kg
• Sand: 16.73 kg
• Accelerator: 0.05 kg
• Curing Agent: 0.075 kg

Strictly follow the ratio to mix materials evenly, which guarantees high bonding strength, good insulation and long-term sealing for your electrolytic cell.

Our electrolytic cell is widely applied in:

• Copper refining from copper concentrate
• Copper recovery from copper scrap
• Electrowinning of anode copper
• Production of high-purity refined copper and copper alloy
