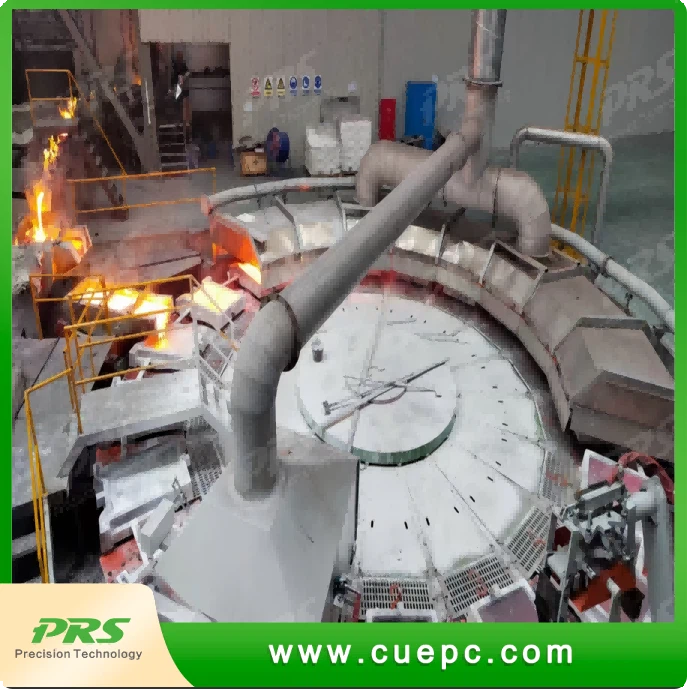

Automatic Copper Anode Casting System

The automatic copper anode casting system is a continuous production line dedicated to copper fire refining processes. It adopts a rotary disc structure with servo quantitative pouring technology, to realize fully automatic production from molten copper receiving to finished anode plate output.

Traditional manual or semi-automatic casting usually has problems such as large anode weight deviation, uneven surface quality, high labor intensity and poor on-site environment. This system controls pouring volume through closed-loop weighing feedback, produces anode plates with uniform specification and stable quality, effectively reduces short-circuit risks in subsequent electrolysis, and improves the overall current efficiency of the tankhouse.

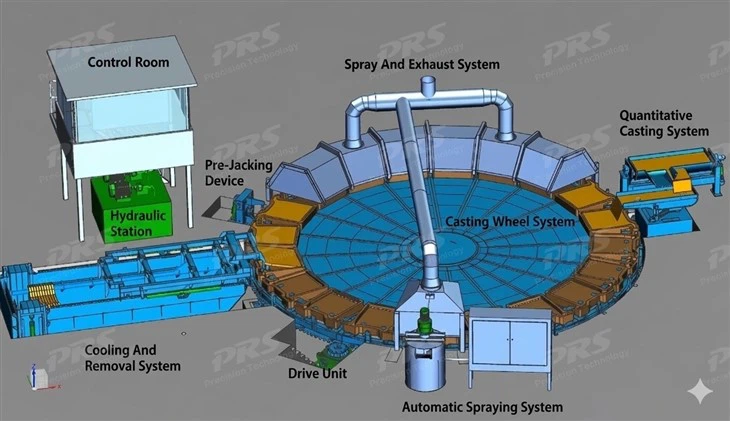

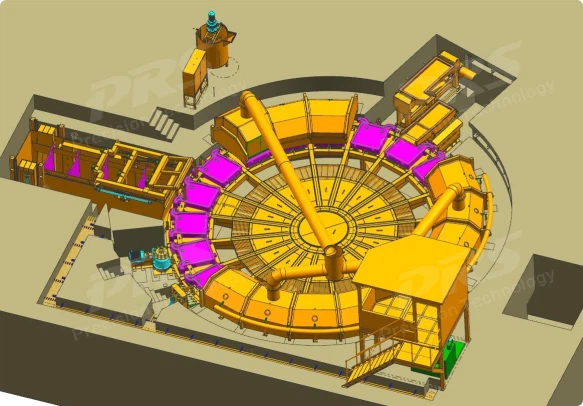

Corresponding to the overall layout of the equipment, the system consists of the following core units:

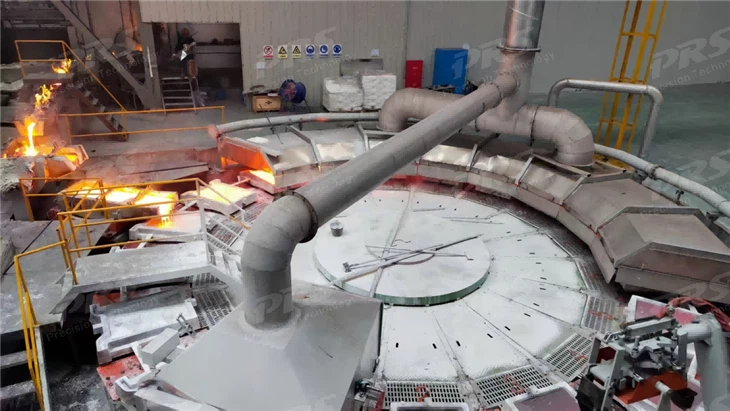

1. Casting Wheel System
   The main rotary disc adopts a central support structure with peripheral drive, equipped with multiple sets of anode molds. Variable frequency control ensures smooth rotation and accurate station positioning.
2. Quantitative Casting System
   Servo-driven pouring mechanism with real-time weighing closed-loop control, which accurately controls the weight of each anode plate and reduces deviation between single plates.
3. Automatic Spraying System
   Automatically coats the mold surface with release agent before each pouring cycle, to improve anode surface quality, reduce burr defects and extend the service life of the mold.
4. Spray and Exhaust System
   The closed exhaust hood collects steam and flue gas generated during casting and spraying, to reduce workshop smoke diffusion and improve on-site operating environment.

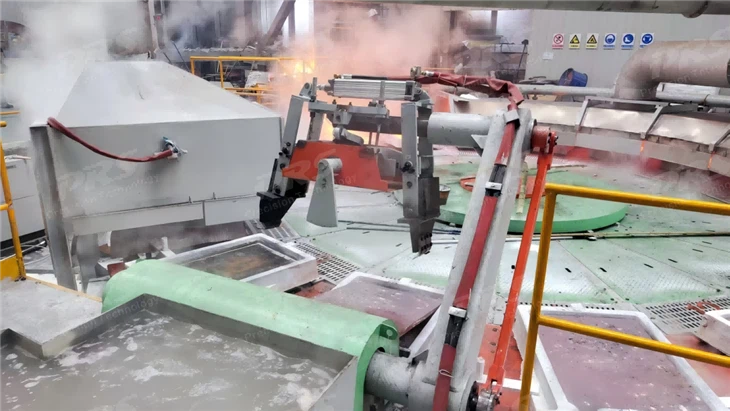

5. Pre-Jacking Device
   Hydraulic jacking mechanism at the demolding station, which lifts the solidified anode plate from the mold smoothly to avoid deformation and edge damage during demolding.
6. Cooling and Removal System
   Water cooling tank with conveying mechanism, which further cools the demolded anode plates and transports them to the discharging position in sequence.
7. Drive Unit Peripheral variable frequency drive mechanism, which controls the rotation speed of the casting wheel stably and matches the production rhythm with the upstream refining furnace.
8. Hydraulic Station
   Independent hydraulic power unit, which provides stable power for jacking, demolding and pushing actions of the whole line.
9. Control Room
   Centralized electrical control room with PLC + HMI touch screen system, which realizes full-process monitoring, parameter adjustment and fault alarm of the casting line.



• Fully automatic operation with centralized control
• Quantitative pouring technology for precise anode weight
• Rotary disc design ensures stable movement and accurate positioning
• Smooth casting process with minimal burrs and edge defects
• Suitable for continuous, high-capacity copper anode production

1. High Weight Consistency
   Servo quantitative pouring with real-time weighing feedback ensures stable weight of each anode plate, uniform electrode spacing after being loaded into the electrolytic cell, effectively reducing short-circuit probability and improving electrolysis current efficiency.
2. Continuous High-Efficiency Production
   Rotary disc structure realizes uninterrupted circular operation, with significantly higher production efficiency than intermittent manual casting, suitable for large-scale smelting lines.
3. Stable Anode Surface Quality
   Automatic mold spraying and stable demolding action reduce surface burrs and edge defects, lowering the workload of subsequent anode finishing.
4. Low Manual Intervention
   The whole process from pouring to cooling and discharging is fully automatic, only 1-2 operators are needed for on-site monitoring, which greatly reduces labor intensity and high-temperature operation risks.
5. Good On-site Environment
   Closed spray and exhaust system collects casting fume and steam in a centralized manner, reducing workshop smoke diffusion and making it easier to meet environmental protection requirements.
6. Flexible Matching & Adaptation
   The line can be seamlessly connected with upstream copper refining tilting furnaces, and can be adjusted according to existing plant layout and upstream equipment parameters.

Q1: Can the system be customized for different anode sizes and weights?

A: Yes. Mold size, single anode weight and disc speed can be adjusted according to customer requirements. Please provide specific anode plate drawings during inquiry for matching configuration.

Q2: How is the casting weight accuracy ensured during long-term operation?

A: The system adopts servo-driven pouring mechanism with real-time weighing closed-loop feedback, which automatically corrects the pouring volume according to actual weight data to maintain stable accuracy.

Q3: Can this casting line be connected with our existing refining furnace?

A: Yes. We can adjust the height of the pouring position, production rhythm and overall layout according to the type, output and interface size of your existing refining furnace to realize seamless connection.

Q4: What is the service life of the casting mold?

A: The service life of the mold depends on operating intensity and daily maintenance. Under normal continuous production, the copper mold can be used for about 6–12 months. Wear parts can be replaced separately to reduce maintenance cost.

Q5: Does the system have manual operation mode?

A: Yes. In addition to fully automatic production mode, manual operation mode is reserved for equipment debugging, mold replacement and fault maintenance.
