HDPE Smooth Geomembrane

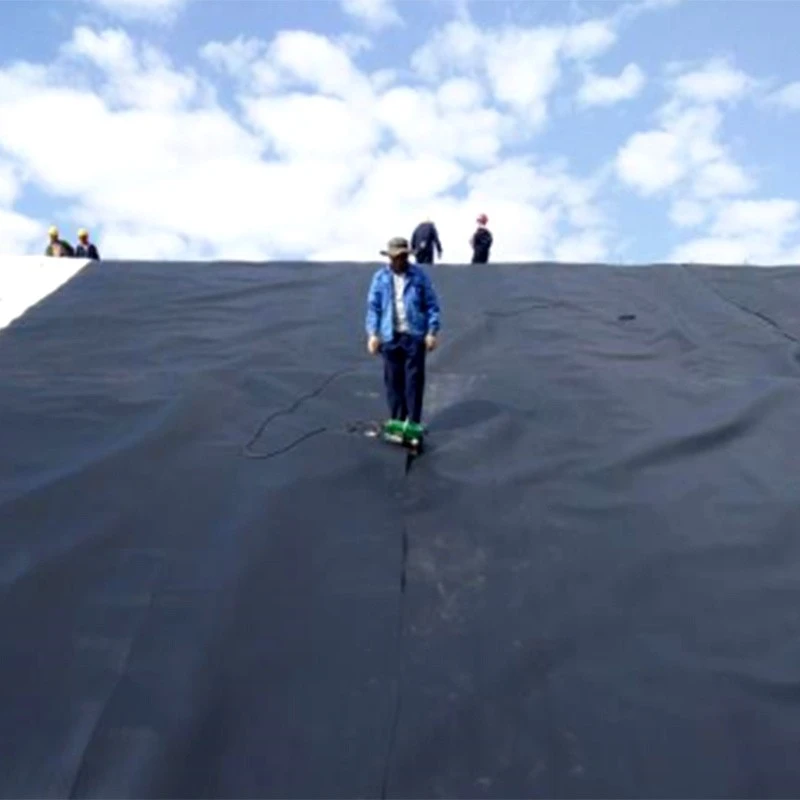

HDPE smooth membrane for tailing pond

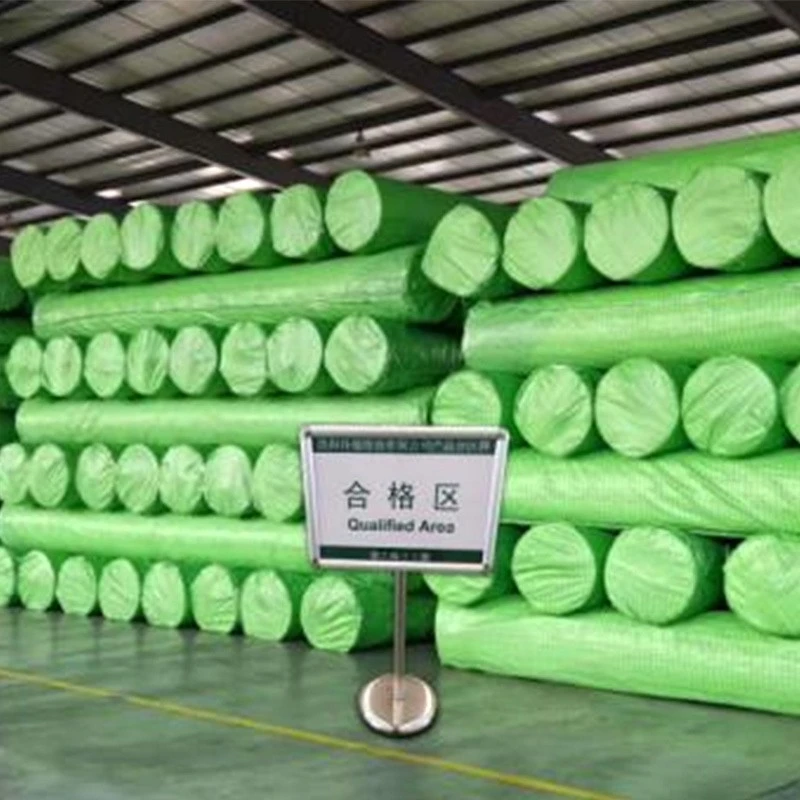

Qualified HDPE smooth membrane
Smooth HDPE geomembrane in mining

HDPE Smooth Geomembrane

HDPE Smooth Geomembrane is a high-density polyethylene liner widely used in mining applications for its exceptional chemical resistance, UV stability, and impermeability. In copper, gold, lithium, and other metal mining operations, it plays a crucial role in preventing leachate seepage, protecting groundwater, and optimizing heap leaching efficiency.

Send Inquiry

Product Introduction

PRS HDPE Smooth Geomembrane for Mining Applications

Efficient Containment Solutions for Leach Pads, Tailing Ponds, and Mining Waste Management

HDPE smooth geomembrane is a high-density polyethylene liner designed for mining containment. In copper, gold, lithium and other metal mining operations, it is used to prevent leachate seepage, protect groundwater, and maintain heap leaching efficiency. The material's consistent performance under extreme mining conditions supports environmental compliance and operational safety for leach pads, tailings dams and process ponds.

Technical Specifications

Property	Specification
Material	100% Virgin HDPE
Surface	Smooth
Available Thickness	0.25mm-3.0mm+
Max Width	8m (seamless wide roll)
Roll Length	Customizable
Core Performance	High tensile strength, high elongation, strong puncture resistance
Weather Resistance	Anti-UV, anti-aging for long-term outdoor mining exposure
Chemical Stability	Resistant to acid, alkali, salt and mining leachate

Core Performance for Mining Conditions

Chemical Resistance: Resists sulfuric acid, cyanide and other aggressive leach solutions common in hydrometallurgical processes.

Environmental Durability: Maintains performance under continuous UV exposure, temperature fluctuations and heavy mechanical loads.

Impermeability: Prevents leachate leakage, reducing environmental risk and supporting long-term containment integrity.

Service Life: Typical operational lifespan exceeds 20 years when installed and maintained according to project specifications.

System Compatibility: Compatible with drainage layers, geonets, geotextiles and underliner systems, with standard heat welding for on-site seams.

Typical Applications in Mining

Heap leach pads

Pregnant leach solution (PLS) ponds

Raffinate ponds

Tailings storage facilities (TSF)

Evaporation ponds

Secondary containment basins

Packaging & Delivery

Packaging

HDPE geomembrane rolls are wrapped with protective film and fixed on steel frames for stable long-distance export transportation.

Loading

Coiled in standard 20' or 40' containers depending on dimensions.

Marking

Each roll is labeled with material type, thickness, width, and production batch.

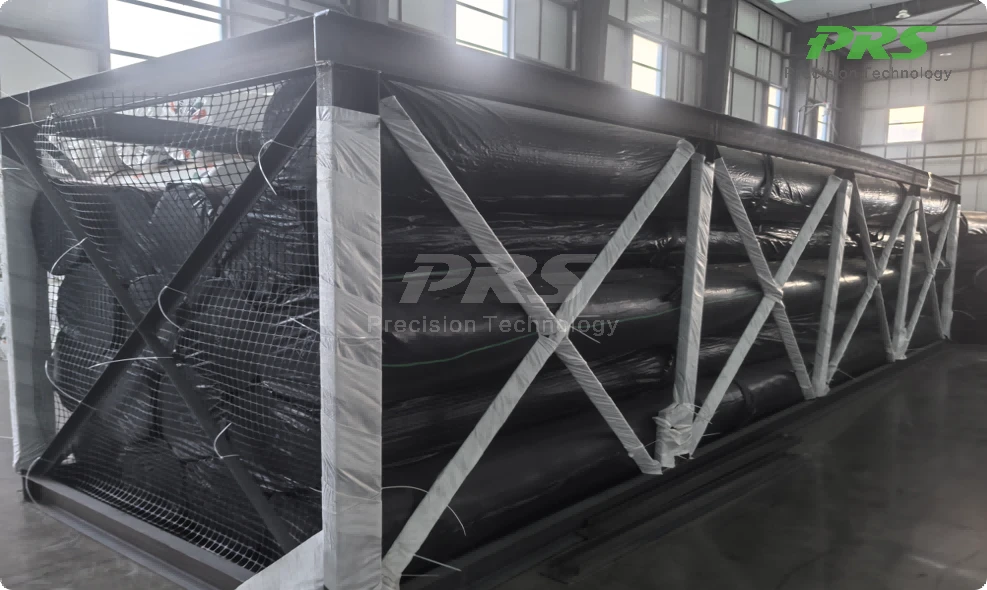

Geomembrane - Placed in Steel Frame

Frequently Asked Questions (FAQ)

Q: Can this geomembrane be used in sulfuric acid leaching systems?

A: Yes. HDPE's chemical resistance to sulfuric acid makes it suitable for use in copper heap leaching and similar processes.

Q: How is the liner welded on-site?

A: Installation uses standard hot wedge or extrusion welding equipment to create continuous, leak-proof seams. We can provide on-site welding guidance or turnkey construction support for mining projects.

Q: What's the typical thickness used in mining applications?

A: Most leach pads and tailings dams use 1.5mm to 2.0mm HDPE geomembrane. Thickness can be adjusted based on project design requirements.
