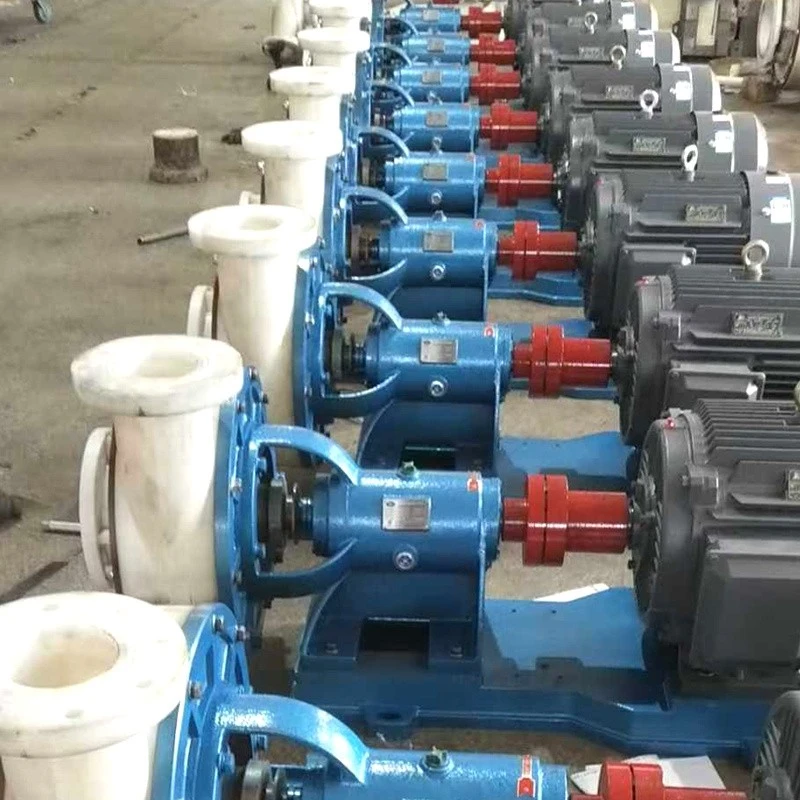

Plastic Centrifugal Slurry Pump
Durable, Lightweight, and Corrosion-Resistant Solution for Acidic Slurry Handling
Plastic centrifugal slurry pumps are specifically designed for handling highly corrosive and abrasive slurries in copper electrowinning and hydrometallurgical plants. Engineered with thermoplastic materials, these pumps offer superior chemical resistance, lightweight performance, and cost-effectiveness for low to medium-duty applications.
Technical Specifications
| Item | Typical Range |
|---|---|
| Wetted Material | Engineering plastic |
| Applicable Slurry | Corrosive slurry with solid particles |
| Particle Size | Fine to medium (not large, hard particles) |
| Temperature Range | Depends on plastic material |
| Seal Type | Mechanical seal / Packing seal |
| Drive Type | Direct drive / Belt drive |
When to Choose a Plastic Slurry Pump
A plastic slurry pump is a good fit when:
- You need to transport corrosive slurry with solid particles
- The particles are relatively fine and not highly abrasive
- Corrosion resistance is more critical than extreme wear resistance
- Budget is limited and you want an economical slurry solution
- You are upgrading from a chemical pump to handle light slurry duty
- The application is light to medium duty, not heavy-duty mining slurry
Product Advantages
Excellent Corrosion Resistance: Ideal for acid, alkali, and salt-containing slurries that would damage metal pumps.
Low Maintenance Design: Non-metallic construction minimizes corrosion-related damage and reduces service intervals.
Lightweight & Easy to Install: Weighs significantly less than metal pumps, lowering handling costs and installation complexity.
Versatile Applications: Effective for pickling lines, leaching circuits, chemical dosing, and acid return systems.
Affordable Spare Parts: Thermoplastic components are more affordable and easier to source than alloys.
Cost Comparison: Slurry Pump Options
| Pump Type | Relative Cost | Wear Resistance | Corrosion Resistance | Best For |
|---|---|---|---|---|
| Plastic Slurry Pump | 1.0x | Low-Medium | Good | Light slurry, corrosive, budget-focused |
| UHMWPE Slurry Pump | 1.5–2.0x | Medium-High | Excellent | Medium slurry, corrosive, longer life |
| High Chrom Slurry Pump | 1.5–2.5x | High | Low-Medium | Highly abrasive, neutral/weak acid slurry |
| Ceramic Slurry Pump | Higher | Very High | Excellent | Strong acid + high abrasion, severe conditions |
Note: Cost and performance ratios are general estimates. Actual values vary by specific model and application.
Material Selection Confusion
Clients often struggle with choosing between different plastic materials. We help identify the best option based on pH, temperature, and solids.
Durability in Harsh Conditions
Although plastic is corrosion-resistant, we design structural reinforcements for higher mechanical stability.
Seal Leakage Risks
We provide flexible sealing options to ensure pump integrity in highly acidic conditions.
Service Support
We offer clear maintenance manuals and virtual guidance for overseas users.
Packaging & Delivery
Pumps are wrapped in plastic film and secured in plywood cases to prevent abrasion during transit.
Components are disassembled and packed separately if necessary to reduce shipping volume.
Clear labels and installation instructions included for ease of reassembly.
FAQ
Q1: How is a slurry pump different from a chemical pump?
A: A slurry pump is designed to handle solid particles - it has wider flow passages, thicker components and more robust construction to resist wear. A chemical pump is designed for clear corrosive liquids and would wear out quickly with significant solid content.
Q2: Can a plastic slurry pump handle mining slurry?
A: It depends on the slurry. For fine-particle, low-abrasion mining slurry, it may work. For typical heavy-duty mining slurry with hard, abrasive particles, a high-chromium or ceramic slurry pump would be more appropriate.
Q3: How long does a plastic slurry pump last?
A: Service life depends heavily on slurry properties - particle size, concentration, hardness and operating speed. Under light to medium conditions, wetted parts typically last several months to over a year. Harsher conditions will shorten life.
